ATOM MAXI C3D Overview

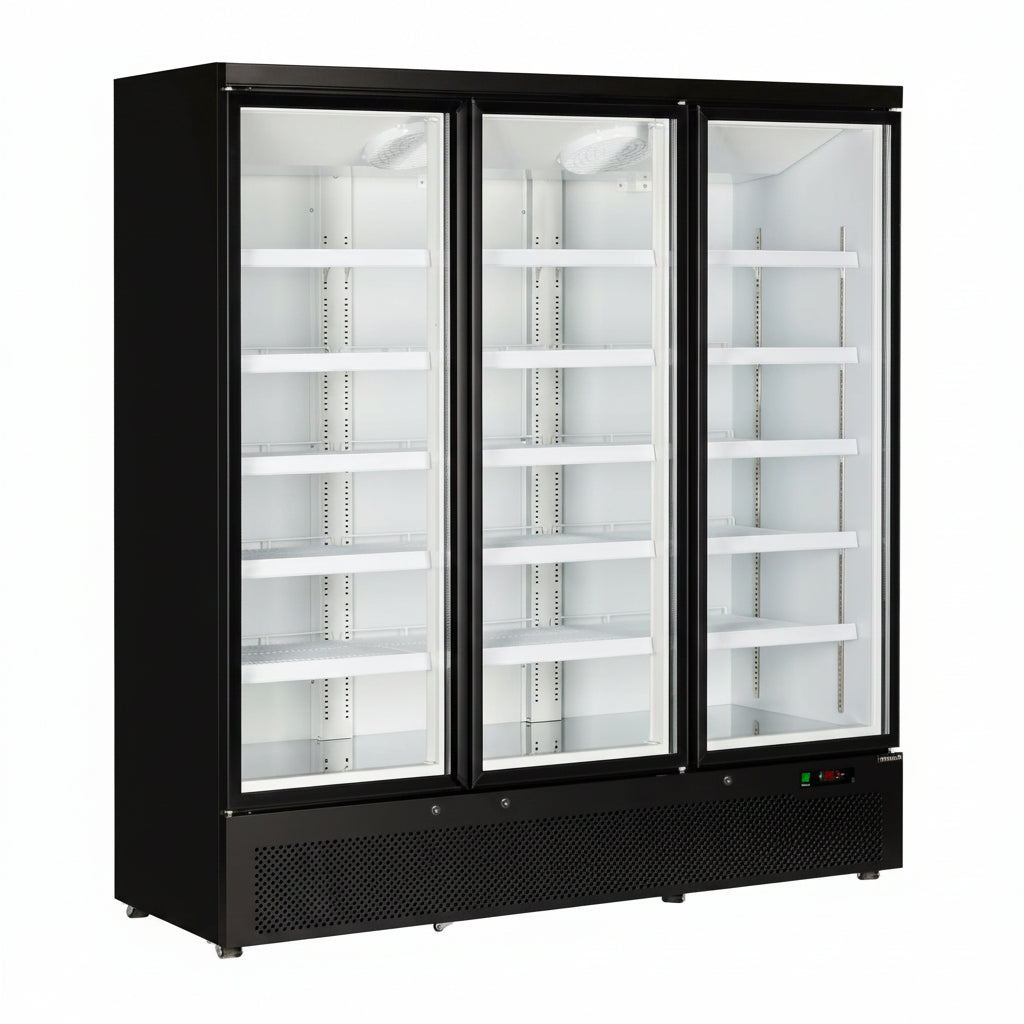

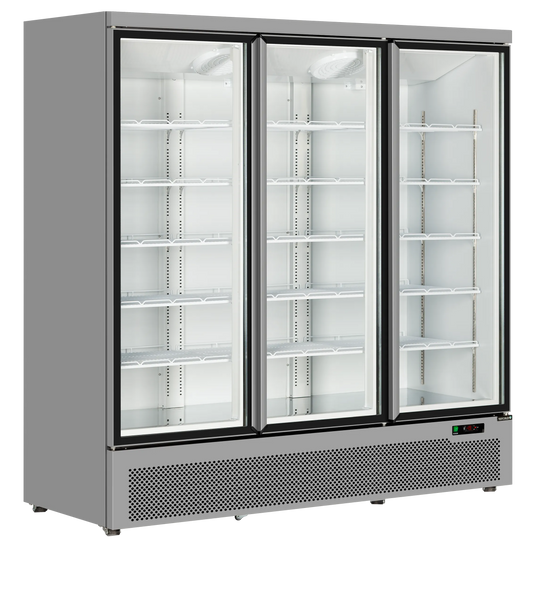

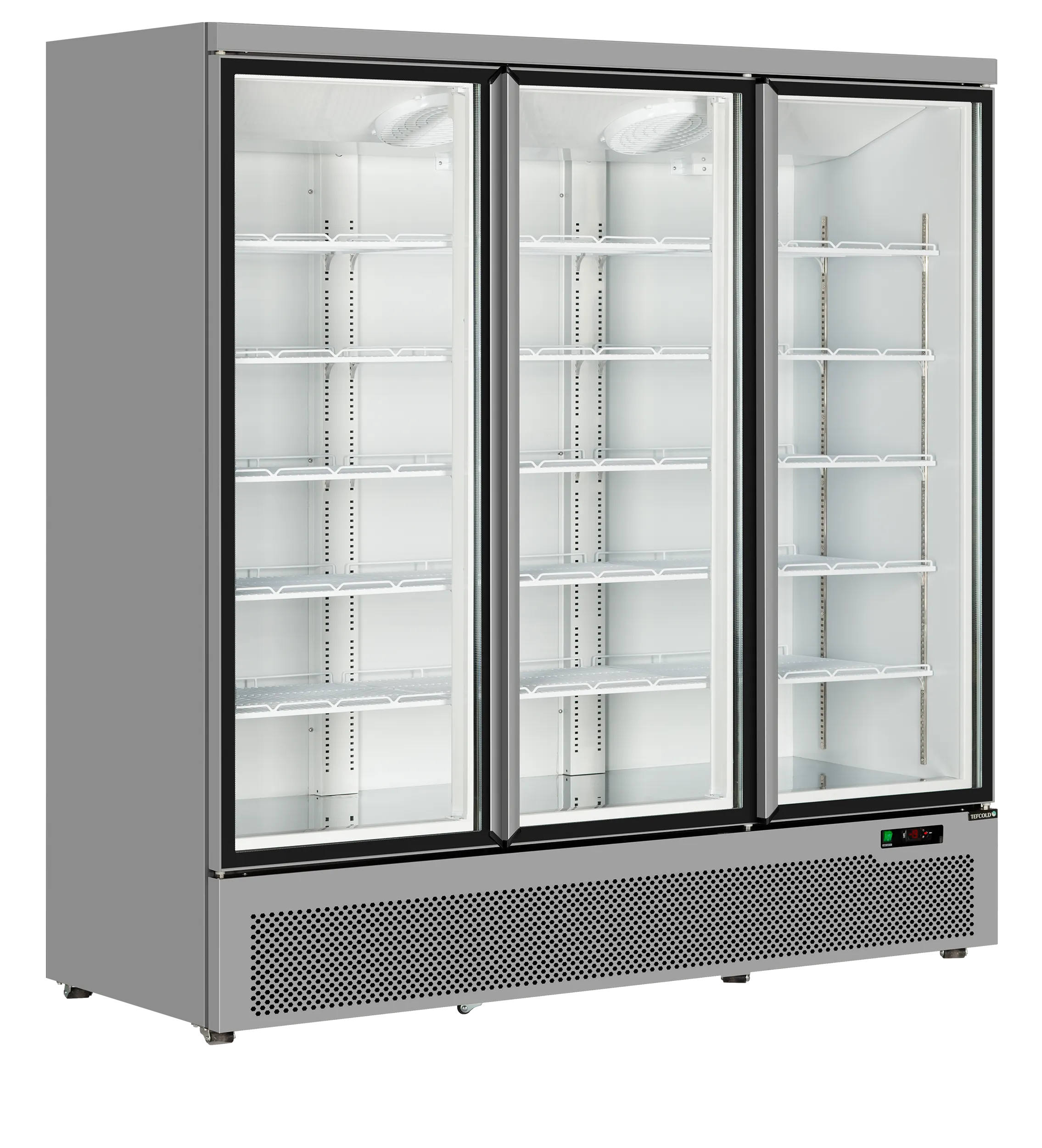

The Tefcold ATOM MAXI C3D is a commercial double glazed glass door merchandiser with 1264L usable (net) capacity, 1664L gross across 3 hinged, double glazed doors, holding a temperature range of -1 to +10 C. It's built for large-format supermarket and wholesale drinks merchandising. Available in Black or Silver finish.

Key Specifications

• Capacity: 1264L usable (net) capacity, 1664L gross
• Doors: 3 hinged, double glazed doors
• External Dimensions (W x D x H): 1880 x 710 x 2003 mm
• Internal Dimensions (W x D x H): 1790 x 595 x 1568 mm
• Temperature Range: -1 to +10 C
• Climate Class: 3
• Refrigerant: R290 (130g)
• Defrost: Automatic / Off Cycle
• Power Supply: 220-240V/50Hz, 13A, 700W input
• Energy Rating: Class B (1975 kWh/year, 5.41 kWh/24h, EEI 19.5%)
• Weight: Black: 207.5kg net / 235kg gross; Silver: 207.5kg net / 235kg gross
• Shelves: 15 adjustable shelves
• Construction: white RAL9003 interior, double-glazed doors
• Noise Level: 65dB(A)

Key Features

• double glazed self-closing doors
• LED interior light
• ventilated cooling
• digital controller
• 6 castors

Frequently Asked Questions

What is the capacity of the ATOM MAXI C3D?

The ATOM MAXI C3D has a net capacity of 1264 litres (gross capacity 1664 litres).

What temperature range does the ATOM MAXI C3D operate at?

It operates across -1 to +10 C, suited to large-format supermarket and wholesale drinks merchandising.

What are the dimensions of the ATOM MAXI C3D?

External dimensions are 1880 x 710 x 2003 mm (W x D x H); internal dimensions are 1790 x 595 x 1568 mm (W x D x H).

How energy efficient is the ATOM MAXI C3D?

It carries an EU energy rating of Class B, using approximately 1975 kWh per year (5.41 kWh/24h) at 700W input power.

What is the ATOM MAXI C3D best suited for?

It's designed for large-format supermarket and wholesale drinks merchandising.
